Far infrared quartz heater tube

Far infrared quartz heater tube

Model No.︰IPH113

Brand Name︰YINGPU

Country of Origin︰China

Unit Price︰US $ 2 / pc

Minimum Order︰1000 pc

Inquire Now

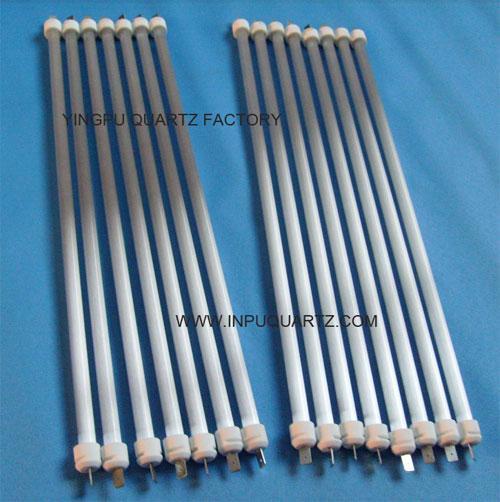

Product Image

Far infrared quartz heater component voltage is 110/220V/380V or other voltage grades needed by users. 1. Length 300 - 3,000 mm; Outer diameter: Φ10-50mm; Power: 0. 3-6KW. Our company can also process, design, produce goods according to each technical parameter of user's special request. 2. Surface temperature of heater divides into three grades: Low temperature: 400℃ --600℃ mid temperature: 600℃ --800℃ high temperature: 800℃ --1000 ℃ 3. Relative radiation characteristic: This quartz heater component has strong transmission at far infrared, compared with other kinds far infrared products, when the wavelength >6Lj, radiation energy is particularly remarkable. 4. The spectrum emissivities: The quartz heater the component have no coating, and milky white quartz tube playing a radiation role promptly, also supporting and insulate role. 5. Radiation rate is high, and hot inertia is small, milky white quartz tubes' hot energy is only 10% of the carborundum and metal tube, Hot inertia is < 20 seconds. It is specially suitable for the production technology of the intermittence type , the continuous type is better!
